Rounded Rectangle: JNDI Service Provider for Windows® Registries

Jeff Lawson

Rounded Rectangle: Overview

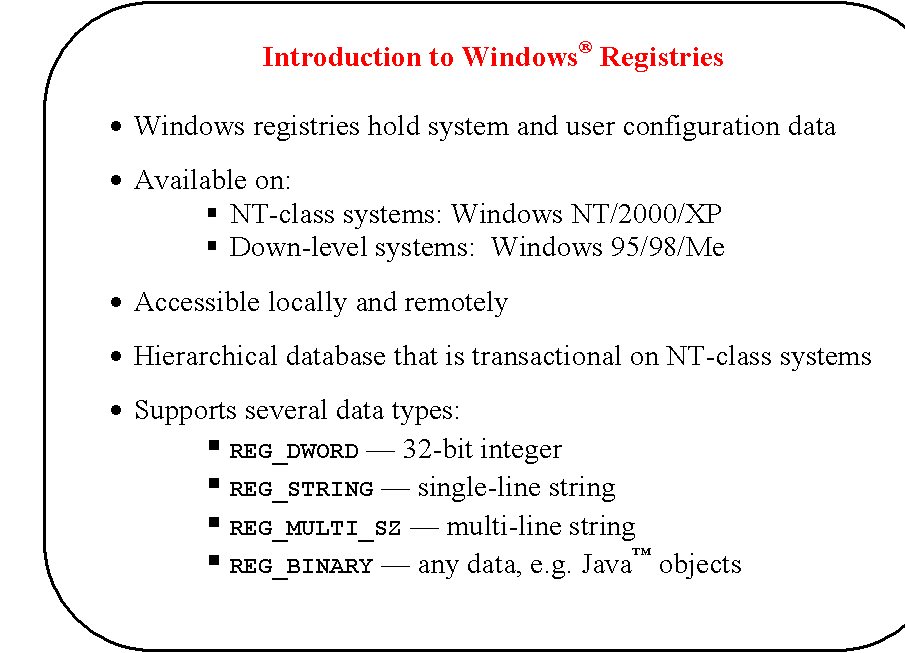

· Introduction to Windows® Registries

· Windows® Registries are Naming Services

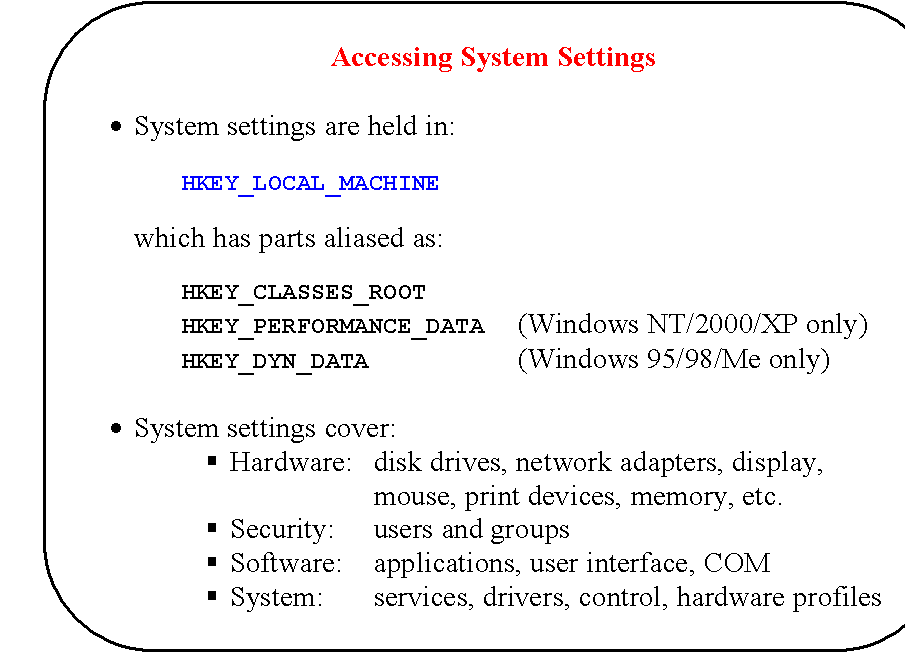

· Accessing System Settings

· Accessing User Settings

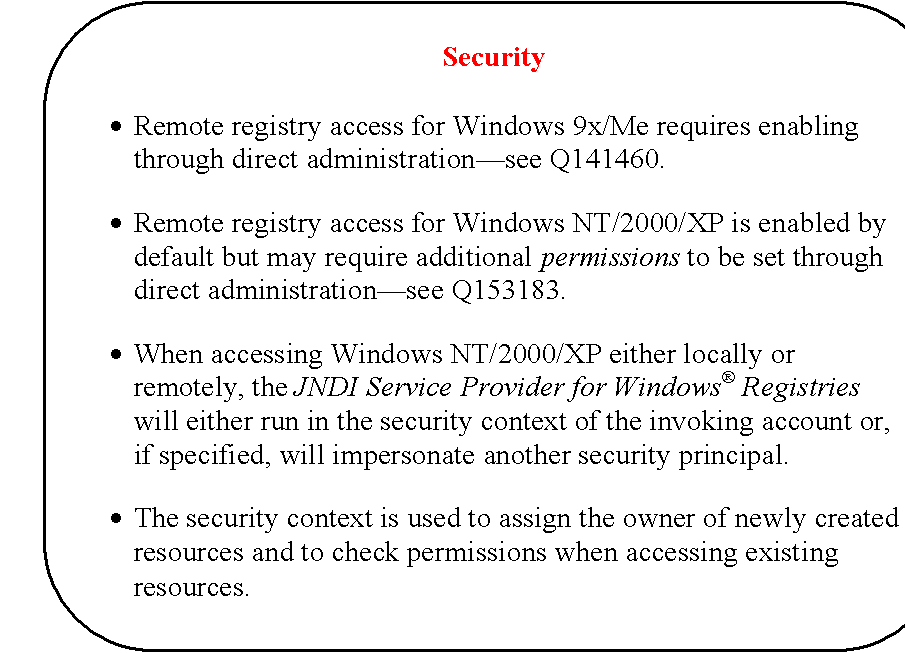

· Security

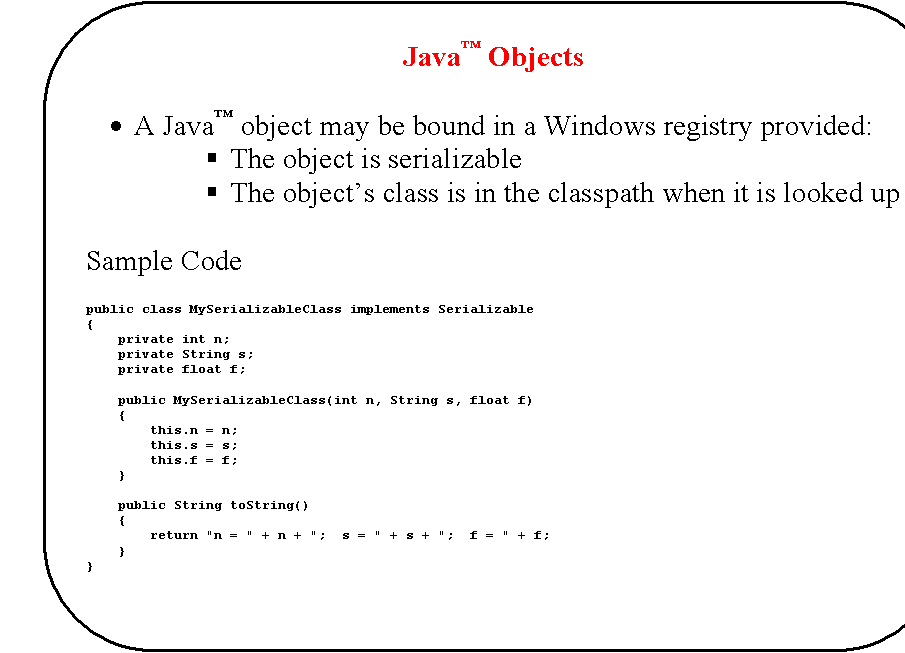

· Java™ Objects

· Federation

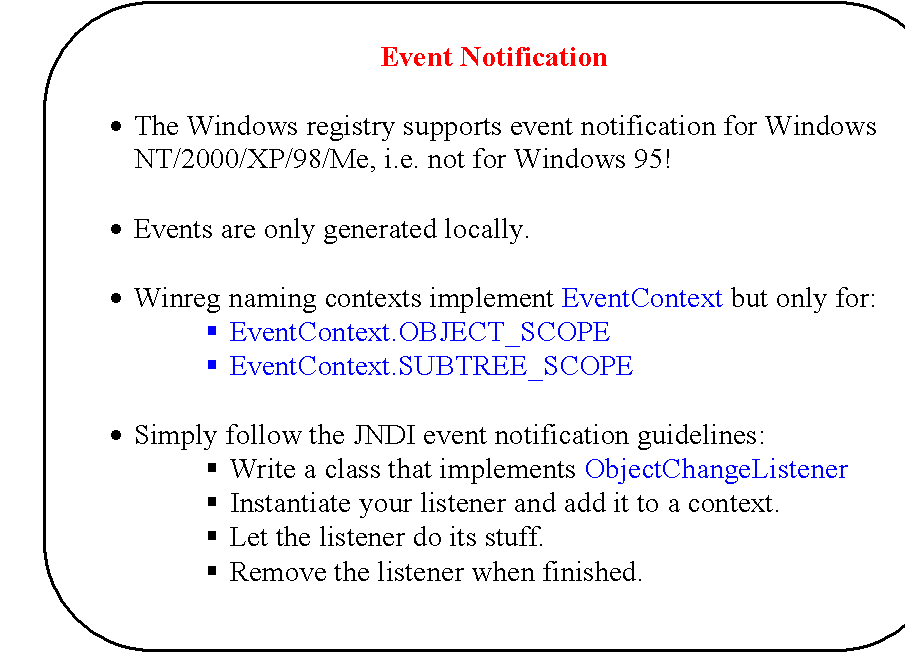

· Event Notification

· Summary

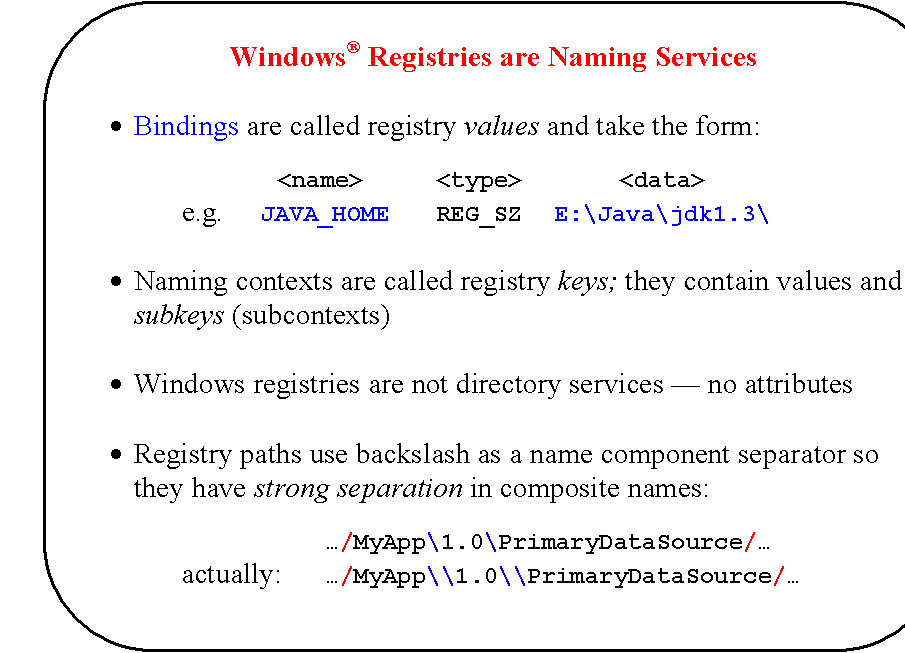

$Rounded Rectangle: Windows® Registries are Naming Services · Bindings are called registry values and take the form: <name> <type> <data> e.g. JAVA_HOME REG_SZ E:\Java\jdk1.3\ · Naming contexts are called registry keys; they contain values and subkeys (subcontexts) · Windows registries are not directory services — no attributes · Registry paths use backslash as a name component separator so they have strong separation in composite names: …/MyApp\1.0\PrimaryDataSource/… actually: …/MyApp\\1.0\\PrimaryDataSource/…$

Rounded Rectangle:

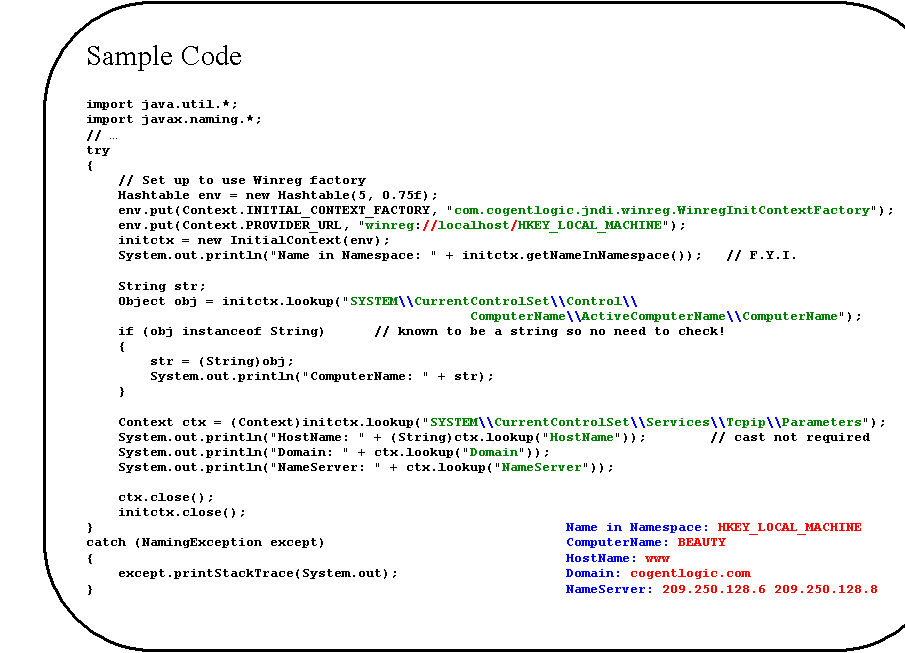

$Rounded Rectangle: Sample Code import java.util.*; import javax.naming.*; // … try { // Set up to use Winreg factory Hashtable env = new Hashtable(5, 0.75f); env.put(Context.INITIAL_CONTEXT_FACTORY, "com.cogentlogic.jndi.winreg.WinregInitContextFactory"); env.put(Context.PROVIDER_URL, "winreg://localhost/HKEY_LOCAL_MACHINE"); initctx = new InitialContext(env); System.out.println("Name in Namespace: " + initctx.getNameInNamespace()); // F.Y.I. String str; Object obj = initctx.lookup("SYSTEM\\CurrentControlSet\\Control\\ ComputerName\\ActiveComputerName\\ComputerName"); if (obj instanceof String) // known to be a string so no need to check! { str = (String)obj; System.out.println("ComputerName: " + str); } Context ctx = (Context)initctx.lookup("SYSTEM\\CurrentControlSet\\Services\\Tcpip\\Parameters"); System.out.println("HostName: " + (String)ctx.lookup("HostName")); // cast not required System.out.println("Domain: " + ctx.lookup("Domain")); System.out.println("NameServer: " + ctx.lookup("NameServer")); ctx.close(); initctx.close(); } Name in Namespace: HKEY_LOCAL_MACHINE catch (NamingException except) ComputerName: BEAUTY { HostName: www except.printStackTrace(System.out); Domain: cogentlogic.com } NameServer: 209.250.128.6 209.250.128.8$

$Rounded Rectangle: More Sample Code // list Hashtable env = new Hashtable(5, 0.75f); env.put(Context.INITIAL_CONTEXT_FACTORY, "com.cogentlogic.jndi.winreg.WinregInitContextFactory"); env.put(Context.PROVIDER_URL, "winreg://localhost/HKEY_LOCAL_MACHINE\\SOFTWARE\\ Microsoft\\Windows NT\\CurrentVersion"); initctx = new InitialContext(env); NamingEnumeration enum = initctx.list("Time Zones"); NameClassPair ncp; while (enum.hasMore()) { ncp = (NameClassPair)enum.next(); System.out.println(ncp); } initctx.close(); Afghanistan Standard Time: com.cogentlogic.jndi.winreg.WinregContext Alaskan Standard Time: com.cogentlogic.jndi.winreg.WinregContext Arabian Standard Time: com.cogentlogic.jndi.winreg.WinregContext Atlantic Standard Time: com.cogentlogic.jndi.winreg.WinregContext AUS Central Standard Time: com.cogentlogic.jndi.winreg.WinregContext Azores Standard Time: com.cogentlogic.jndi.winreg.WinregContext Bangkok Standard Time: com.cogentlogic.jndi.winreg.WinregContext Canada Central Standard Time: com.cogentlogic.jndi.winreg.WinregContext Caucasus Standard Time: com.cogentlogic.jndi.winreg.WinregContext Cen. Australia Standard Time: com.cogentlogic.jndi.winreg.WinregContext Central Asia Standard Time: com.cogentlogic.jndi.winreg.WinregContext Central Europe Standard Time: com.cogentlogic.jndi.winreg.WinregContext Central European Standard Time: com.cogentlogic.jndi.winreg.WinregContext Central Pacific Standard Time: com.cogentlogic.jndi.winreg.WinregContext Central Standard Time: com.cogentlogic.jndi.winreg.WinregContext China Standard Time: com.cogentlogic.jndi.winreg.WinregContext Dateline Standard Time: com.cogentlogic.jndi.winreg.WinregContext E. Africa Standard Time: com.cogentlogic.jndi.winreg.WinregContext$

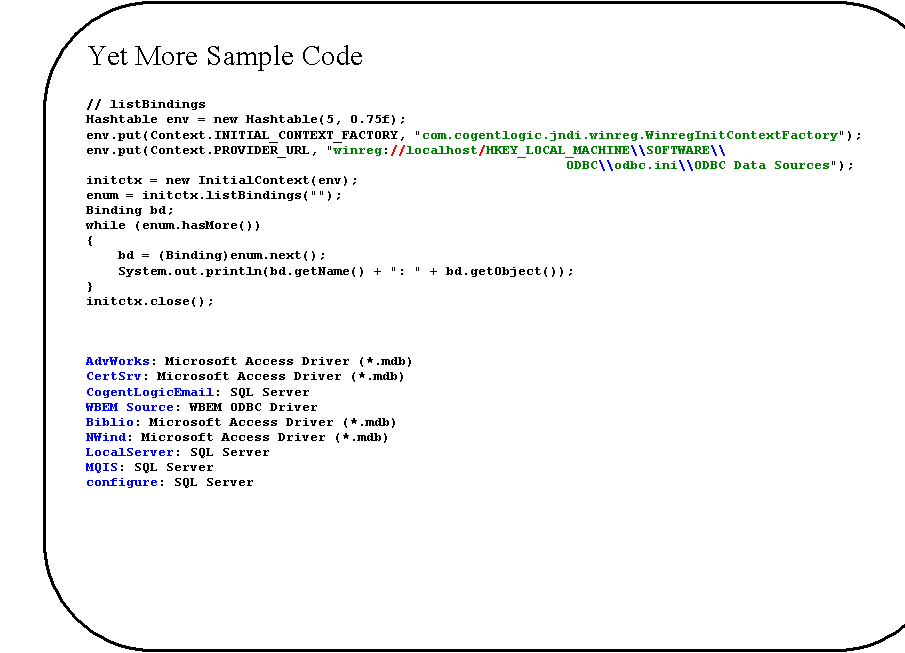

$Rounded Rectangle: Yet More Sample Code // listBindings Hashtable env = new Hashtable(5, 0.75f); env.put(Context.INITIAL_CONTEXT_FACTORY, "com.cogentlogic.jndi.winreg.WinregInitContextFactory"); env.put(Context.PROVIDER_URL, "winreg://localhost/HKEY_LOCAL_MACHINE\\SOFTWARE\\ ODBC\\odbc.ini\\ODBC Data Sources"); initctx = new InitialContext(env); enum = initctx.listBindings(""); Binding bd; while (enum.hasMore()) { bd = (Binding)enum.next(); System.out.println(bd.getName() + ": " + bd.getObject()); } initctx.close(); AdvWorks: Microsoft Access Driver (*.mdb) CertSrv: Microsoft Access Driver (*.mdb) CogentLogicEmail: SQL Server WBEM Source: WBEM ODBC Driver Biblio: Microsoft Access Driver (*.mdb) NWind: Microsoft Access Driver (*.mdb) LocalServer: SQL Server MQIS: SQL Server configure: SQL Server$

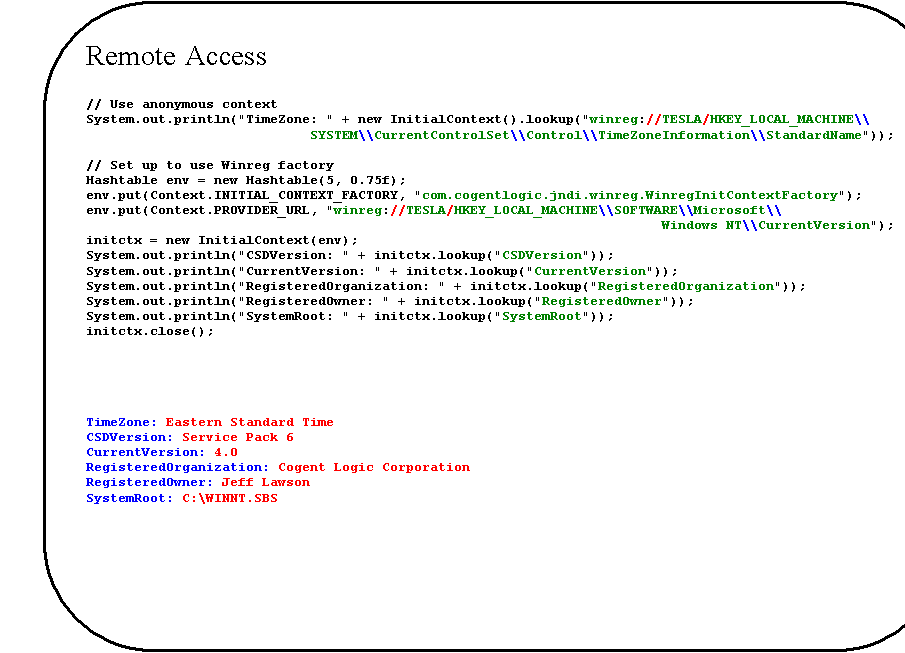

$Rounded Rectangle: Remote Access // Use anonymous context System.out.println("TimeZone: " + new InitialContext().lookup("winreg://TESLA/HKEY_LOCAL_MACHINE\\ SYSTEM\\CurrentControlSet\\Control\\TimeZoneInformation\\StandardName")); // Set up to use Winreg factory Hashtable env = new Hashtable(5, 0.75f); env.put(Context.INITIAL_CONTEXT_FACTORY, "com.cogentlogic.jndi.winreg.WinregInitContextFactory"); env.put(Context.PROVIDER_URL, "winreg://TESLA/HKEY_LOCAL_MACHINE\\SOFTWARE\\Microsoft\\ Windows NT\\CurrentVersion"); initctx = new InitialContext(env); System.out.println("CSDVersion: " + initctx.lookup("CSDVersion")); System.out.println("CurrentVersion: " + initctx.lookup("CurrentVersion")); System.out.println("RegisteredOrganization: " + initctx.lookup("RegisteredOrganization")); System.out.println("RegisteredOwner: " + initctx.lookup("RegisteredOwner")); System.out.println("SystemRoot: " + initctx.lookup("SystemRoot")); initctx.close(); TimeZone: Eastern Standard Time CSDVersion: Service Pack 6 CurrentVersion: 4.0 RegisteredOrganization: Cogent Logic Corporation RegisteredOwner: Jeff Lawson SystemRoot: C:\WINNT.SBS$

$Rounded Rectangle: Writing System Settings · Applications ought to be storing data that isn’t user-specific in: HKEY_LOCAL_MACHINE\SOFTWARE\ <Company Name>\<App Name>\<version>\ Sample Code env.put(Context.INITIAL_CONTEXT_FACTORY, "com.cogentlogic.jndi.winreg.WinregInitContextFactory"); env.put(Context.PROVIDER_URL, "winreg://localhost/HKEY_LOCAL_MACHINE\\SOFTWARE"); initctx = new InitialContext(env); Context subctx = initctx.createSubcontext("Cogent Logic\\VPA\\1.0"); // Create Bindings: subctx.bind("DeliveryPath", "\\\\BEAUTY\\VPA"); // REG_SZ subctx.rebind("SequenceNumber", new Integer(1234)); // REG_DWORD subctx.rebind("Tolerance", new Float(1234.567F)); // REG_BINARY // Read bindings obj = subctx.lookup("DeliveryPath"); System.out.println("DeliveryPath: " + obj + " (data type: " + obj.getClass() + ")"); obj = subctx.lookup("SequenceNumber"); System.out.println("SequenceNumber: " + obj + " (data type: " + obj.getClass() + ")"); obj = subctx.lookup("Tolerance"); System.out.println("Tolerance: " + obj + " (data type: " + obj.getClass() + ")"); subctx.close(); initctx.close();$

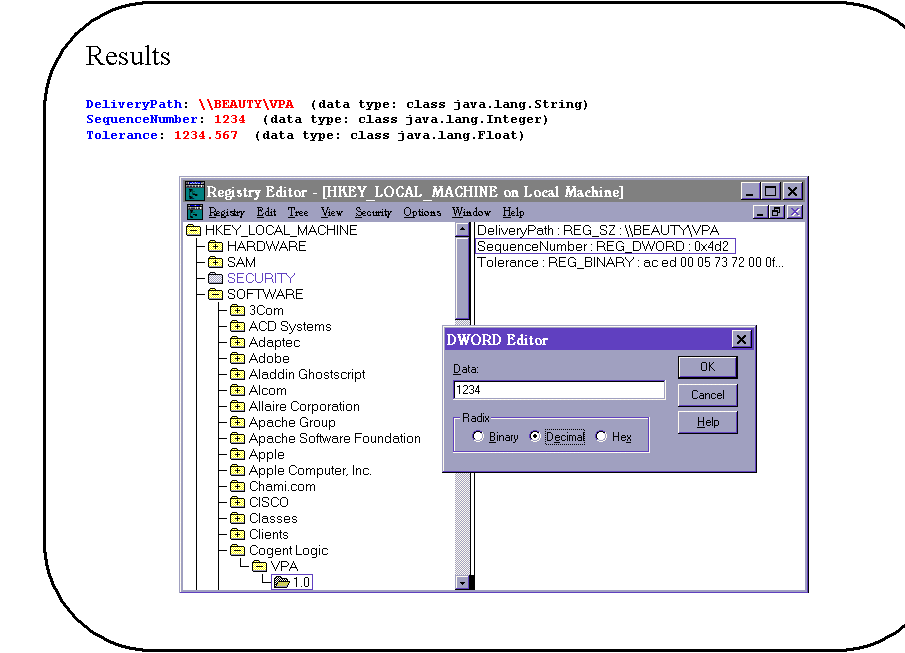

$Rounded Rectangle: Results DeliveryPath: \\BEAUTY\VPA (data type: class java.lang.String) SequenceNumber: 1234 (data type: class java.lang.Integer) Tolerance: 1234.567 (data type: class java.lang.Float)$

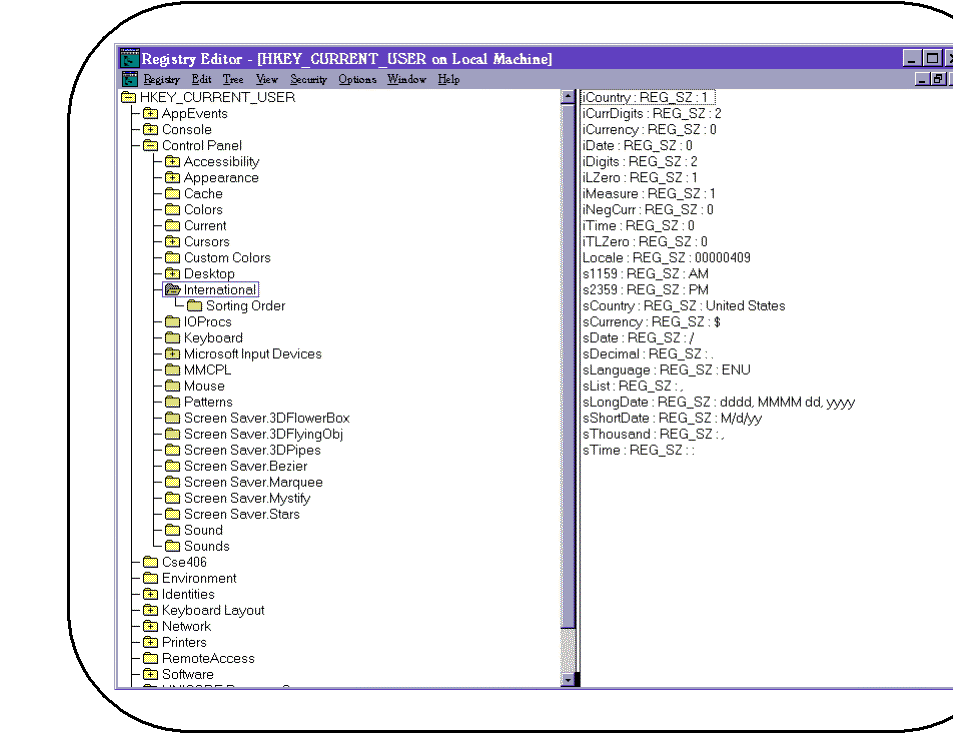

Rounded Rectangle: Accessing User Settings

· User settings are held in:

HKEY_CURRENT_USER

also HKEY_USERS which holds:

.DEFAULT
other user hives

· User settings cover:
§ Desktop and user-interface settings
§ Application preferences and other user-related details
§ Environment variables
§ Printers, mapped network drives, console settings, etc.

Rounded Rectangle:

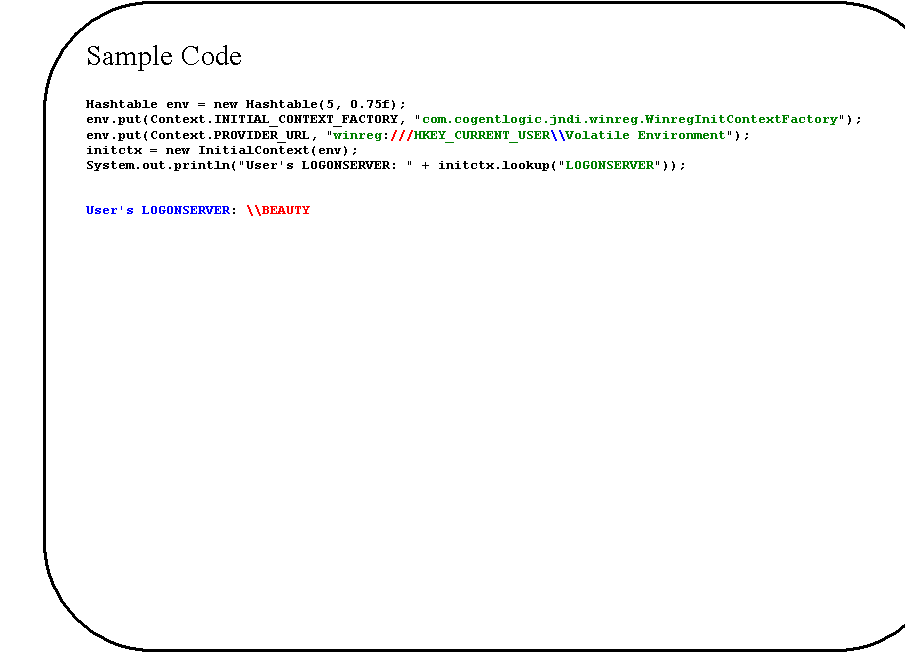

$Rounded Rectangle: Sample Code Hashtable env = new Hashtable(5, 0.75f); env.put(Context.INITIAL_CONTEXT_FACTORY, "com.cogentlogic.jndi.winreg.WinregInitContextFactory"); env.put(Context.PROVIDER_URL, "winreg:///HKEY_CURRENT_USER\\Volatile Environment"); initctx = new InitialContext(env); System.out.println("User's LOGONSERVER: " + initctx.lookup("LOGONSERVER")); User's LOGONSERVER: \\BEAUTY$

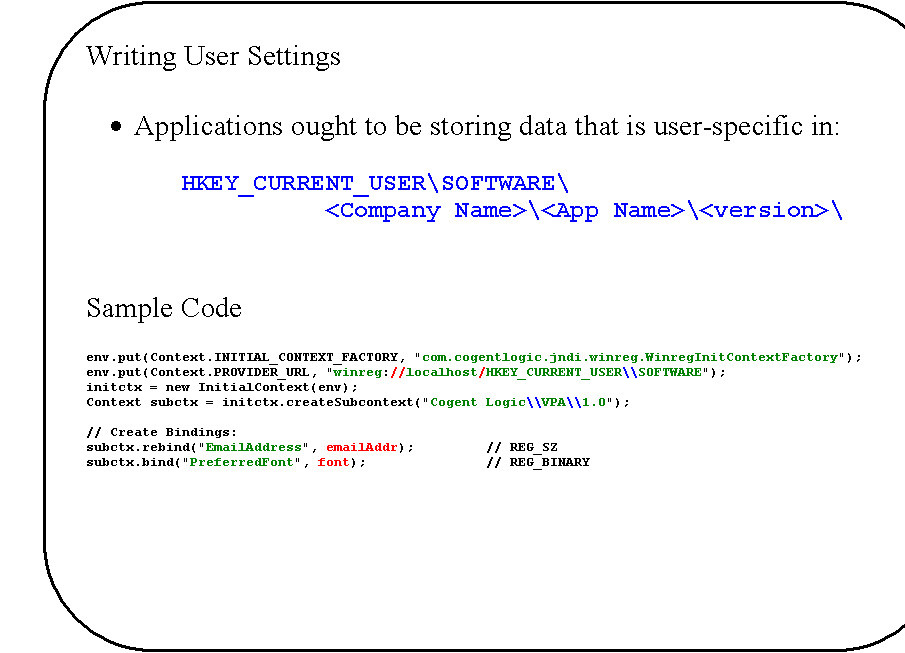

$Rounded Rectangle: Writing User Settings · Applications ought to be storing data that is user-specific in: HKEY_CURRENT_USER\SOFTWARE\ <Company Name>\<App Name>\<version>\ Sample Code env.put(Context.INITIAL_CONTEXT_FACTORY, "com.cogentlogic.jndi.winreg.WinregInitContextFactory"); env.put(Context.PROVIDER_URL, "winreg://localhost/HKEY_CURRENT_USER\\SOFTWARE"); initctx = new InitialContext(env); Context subctx = initctx.createSubcontext("Cogent Logic\\VPA\\1.0"); // Create Bindings: subctx.rebind("EmailAddress", emailAddr); // REG_SZ subctx.bind("PreferredFont", font); // REG_BINARY$

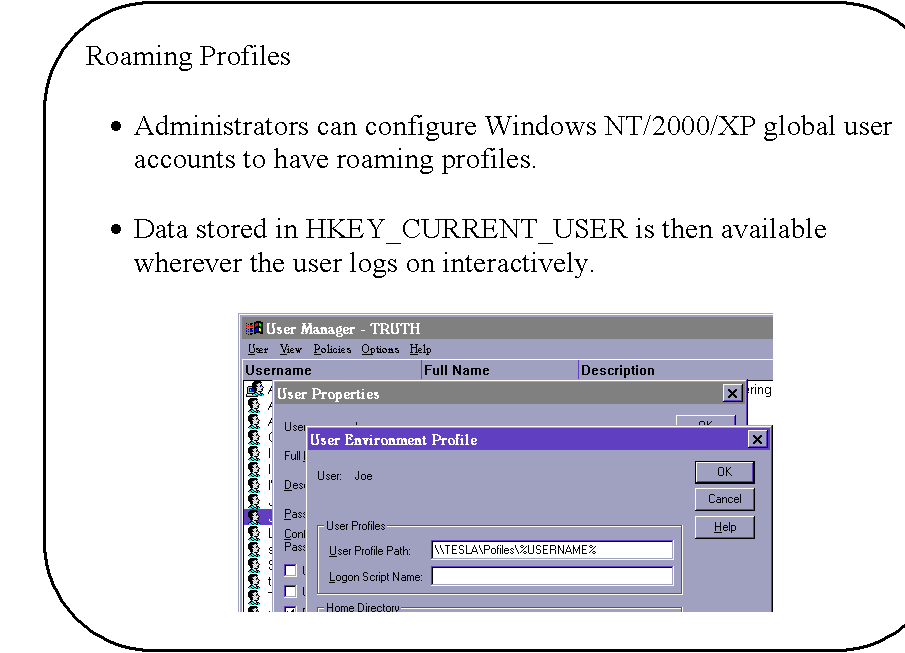

Rounded Rectangle: Roaming Profiles

· Administrators can configure Windows NT/2000/XP global user accounts to have roaming profiles.

· Data stored in HKEY_CURRENT_USER is then available wherever the user logs on interactively.

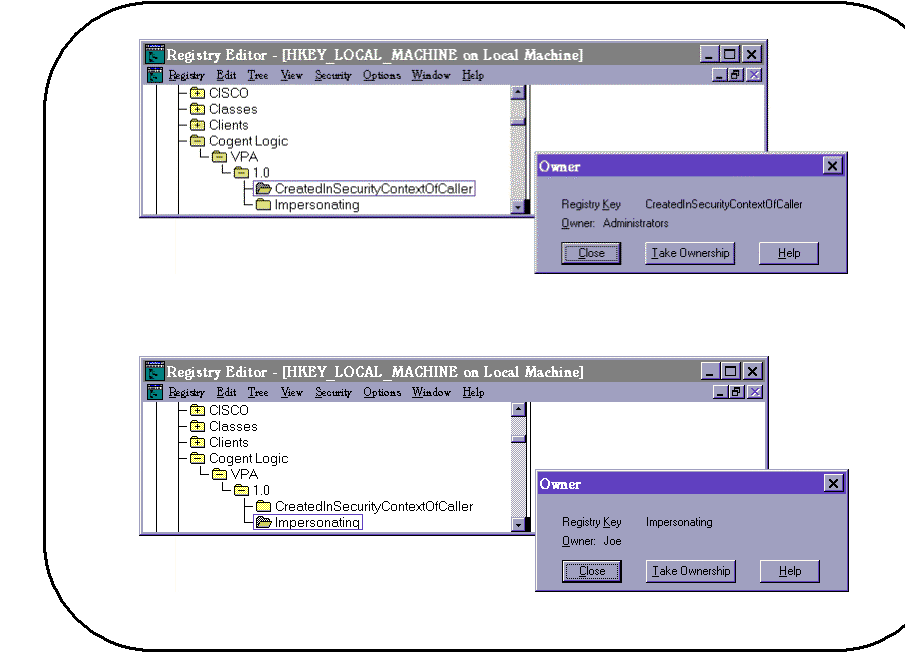

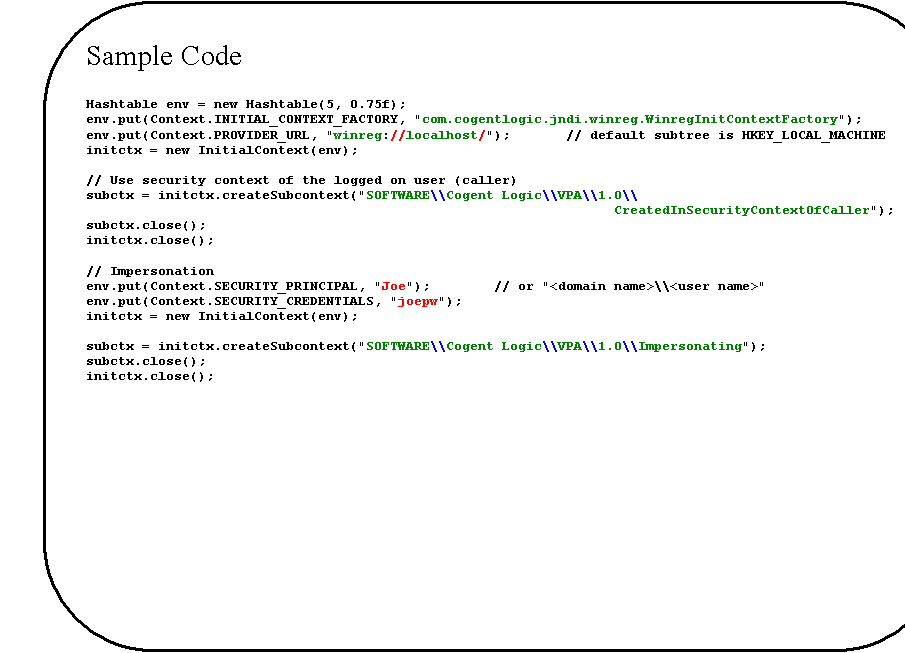

$Rounded Rectangle: Sample Code Hashtable env = new Hashtable(5, 0.75f); env.put(Context.INITIAL_CONTEXT_FACTORY, "com.cogentlogic.jndi.winreg.WinregInitContextFactory"); env.put(Context.PROVIDER_URL, "winreg://localhost/"); // default subtree is HKEY_LOCAL_MACHINE initctx = new InitialContext(env); // Use security context of the logged on user (caller) subctx = initctx.createSubcontext("SOFTWARE\\Cogent Logic\\VPA\\1.0\\ CreatedInSecurityContextOfCaller"); subctx.close(); initctx.close(); // Impersonation env.put(Context.SECURITY_PRINCIPAL, "Joe"); // or "<domain name>\\<user name>" env.put(Context.SECURITY_CREDENTIALS, "joepw"); initctx = new InitialContext(env); subctx = initctx.createSubcontext("SOFTWARE\\Cogent Logic\\VPA\\1.0\\Impersonating"); subctx.close(); initctx.close();$

Rounded Rectangle:

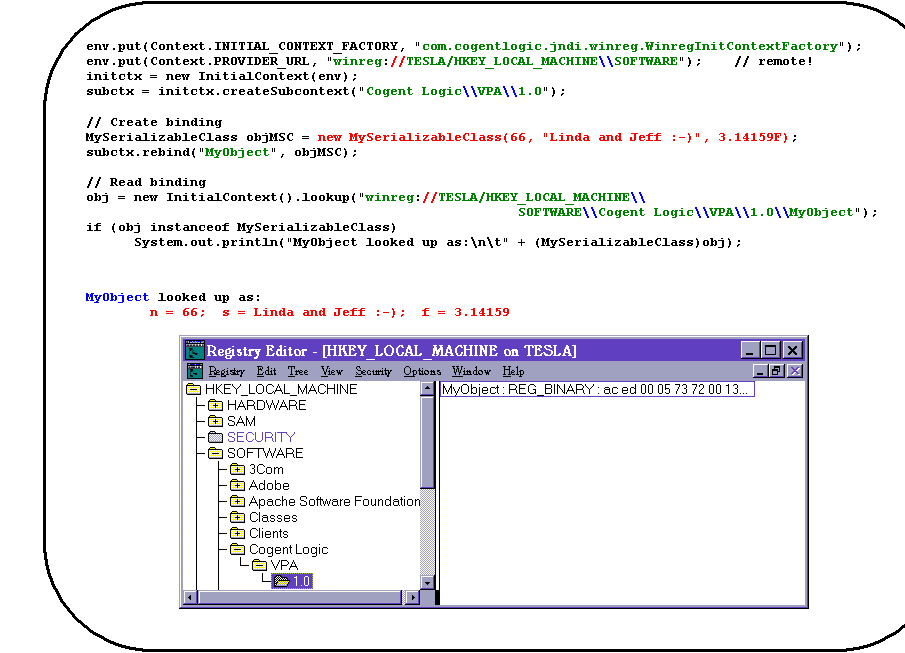

$Rounded Rectangle: env.put(Context.INITIAL_CONTEXT_FACTORY, "com.cogentlogic.jndi.winreg.WinregInitContextFactory"); env.put(Context.PROVIDER_URL, "winreg://TESLA/HKEY_LOCAL_MACHINE\\SOFTWARE"); // remote! initctx = new InitialContext(env); subctx = initctx.createSubcontext("Cogent Logic\\VPA\\1.0"); // Create binding MySerializableClass objMSC = new MySerializableClass(66, "Linda and Jeff :-)", 3.14159F); subctx.rebind("MyObject", objMSC); // Read binding obj = new InitialContext().lookup("winreg://TESLA/HKEY_LOCAL_MACHINE\\ SOFTWARE\\Cogent Logic\\VPA\\1.0\\MyObject"); if (obj instanceof MySerializableClass) System.out.println("MyObject looked up as:\n\t" + (MySerializableClass)obj); MyObject looked up as: n = 66; s = Linda and Jeff :-); f = 3.14159$

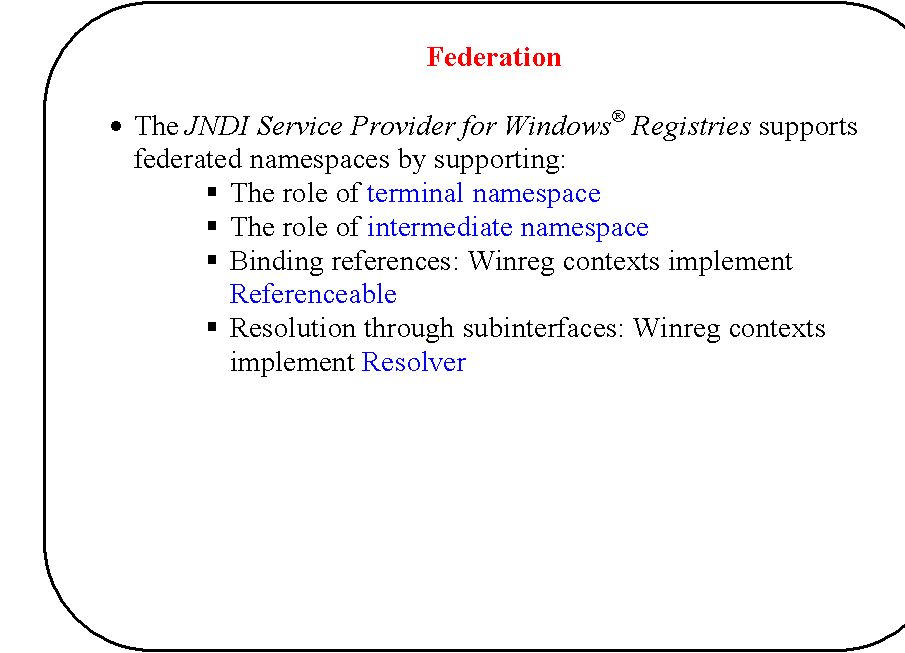

Rounded Rectangle: Federation

· The JNDI Service Provider for Windows® Registries supports federated namespaces by supporting:
§ The role of terminal namespace
§ The role of intermediate namespace
§ Binding references: Winreg contexts implement Referenceable
§ Resolution through subinterfaces: Winreg contexts implement Resolver

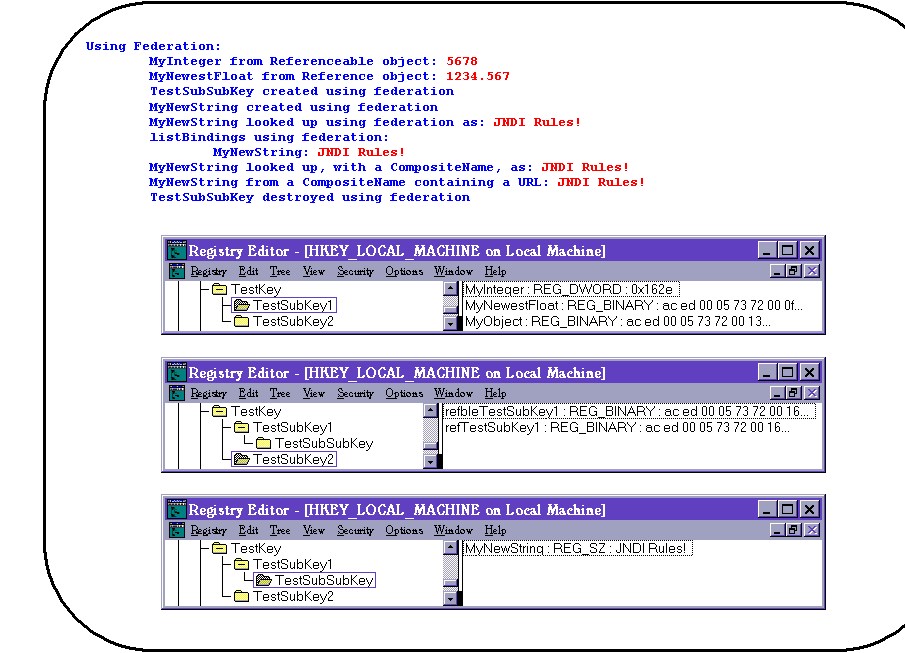

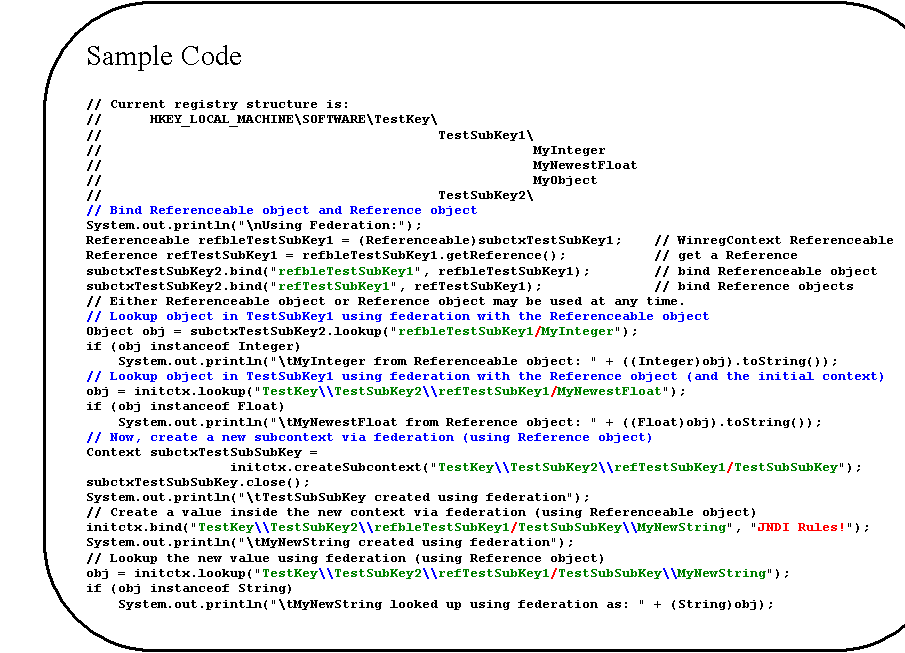

$Rounded Rectangle: Sample Code // Current registry structure is: // HKEY_LOCAL_MACHINE\SOFTWARE\TestKey\ // TestSubKey1\ // MyInteger // MyNewestFloat // MyObject // TestSubKey2\ // Bind Referenceable object and Reference object System.out.println("\nUsing Federation:"); Referenceable refbleTestSubKey1 = (Referenceable)subctxTestSubKey1; // WinregContext Referenceable Reference refTestSubKey1 = refbleTestSubKey1.getReference(); // get a Reference subctxTestSubKey2.bind("refbleTestSubKey1", refbleTestSubKey1); // bind Referenceable object subctxTestSubKey2.bind("refTestSubKey1", refTestSubKey1); // bind Reference objects // Either Referenceable object or Reference object may be used at any time. // Lookup object in TestSubKey1 using federation with the Referenceable object Object obj = subctxTestSubKey2.lookup("refbleTestSubKey1/MyInteger"); if (obj instanceof Integer) System.out.println("\tMyInteger from Referenceable object: " + ((Integer)obj).toString()); // Lookup object in TestSubKey1 using federation with the Reference object (and the initial context) obj = initctx.lookup("TestKey\\TestSubKey2\\refTestSubKey1/MyNewestFloat"); if (obj instanceof Float) System.out.println("\tMyNewestFloat from Reference object: " + ((Float)obj).toString()); // Now, create a new subcontext via federation (using Reference object) Context subctxTestSubSubKey = initctx.createSubcontext("TestKey\\TestSubKey2\\refTestSubKey1/TestSubSubKey"); subctxTestSubSubKey.close(); System.out.println("\tTestSubSubKey created using federation"); // Create a value inside the new context via federation (using Referenceable object) initctx.bind("TestKey\\TestSubKey2\\refbleTestSubKey1/TestSubSubKey\\MyNewString", "JNDI Rules!"); System.out.println("\tMyNewString created using federation"); // Lookup the new value using federation (using Reference object) obj = initctx.lookup("TestKey\\TestSubKey2\\refTestSubKey1/TestSubSubKey\\MyNewString"); if (obj instanceof String) System.out.println("\tMyNewString looked up using federation as: " + (String)obj);$

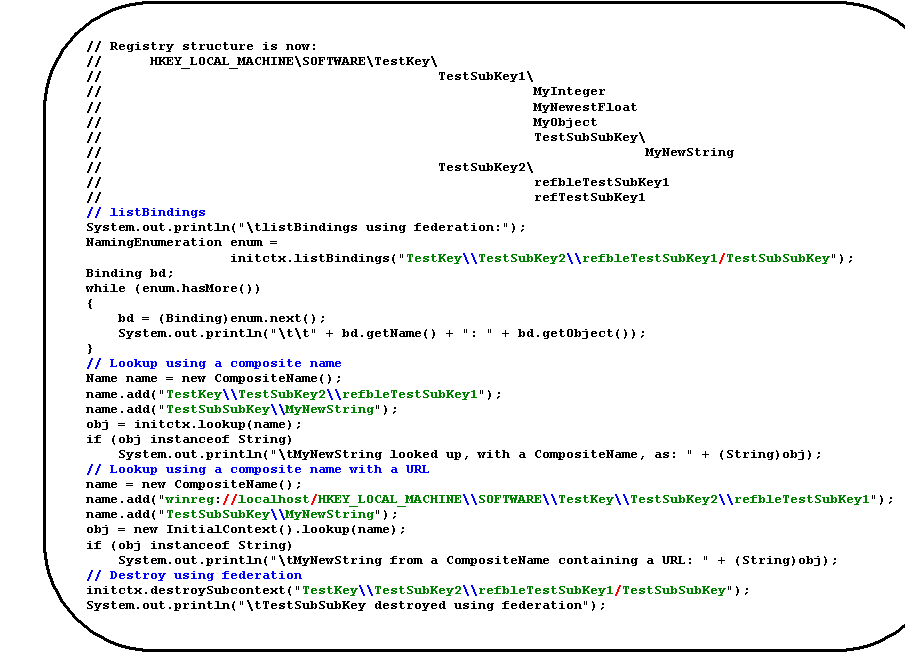

$Rounded Rectangle: // Registry structure is now: // HKEY_LOCAL_MACHINE\SOFTWARE\TestKey\ // TestSubKey1\ // MyInteger // MyNewestFloat // MyObject // TestSubSubKey\ // MyNewString // TestSubKey2\ // refbleTestSubKey1 // refTestSubKey1 // listBindings System.out.println("\tlistBindings using federation:"); NamingEnumeration enum = initctx.listBindings("TestKey\\TestSubKey2\\refbleTestSubKey1/TestSubSubKey"); Binding bd; while (enum.hasMore()) { bd = (Binding)enum.next(); System.out.println("\t\t" + bd.getName() + ": " + bd.getObject()); } // Lookup using a composite name Name name = new CompositeName(); name.add("TestKey\\TestSubKey2\\refbleTestSubKey1"); name.add("TestSubSubKey\\MyNewString"); obj = initctx.lookup(name); if (obj instanceof String) System.out.println("\tMyNewString looked up, with a CompositeName, as: " + (String)obj); // Lookup using a composite name with a URL name = new CompositeName(); name.add("winreg://localhost/HKEY_LOCAL_MACHINE\\SOFTWARE\\TestKey\\TestSubKey2\\refbleTestSubKey1"); name.add("TestSubSubKey\\MyNewString"); obj = new InitialContext().lookup(name); if (obj instanceof String) System.out.println("\tMyNewString from a CompositeName containing a URL: " + (String)obj); // Destroy using federation initctx.destroySubcontext("TestKey\\TestSubKey2\\refbleTestSubKey1/TestSubSubKey"); System.out.println("\tTestSubSubKey destroyed using federation");$

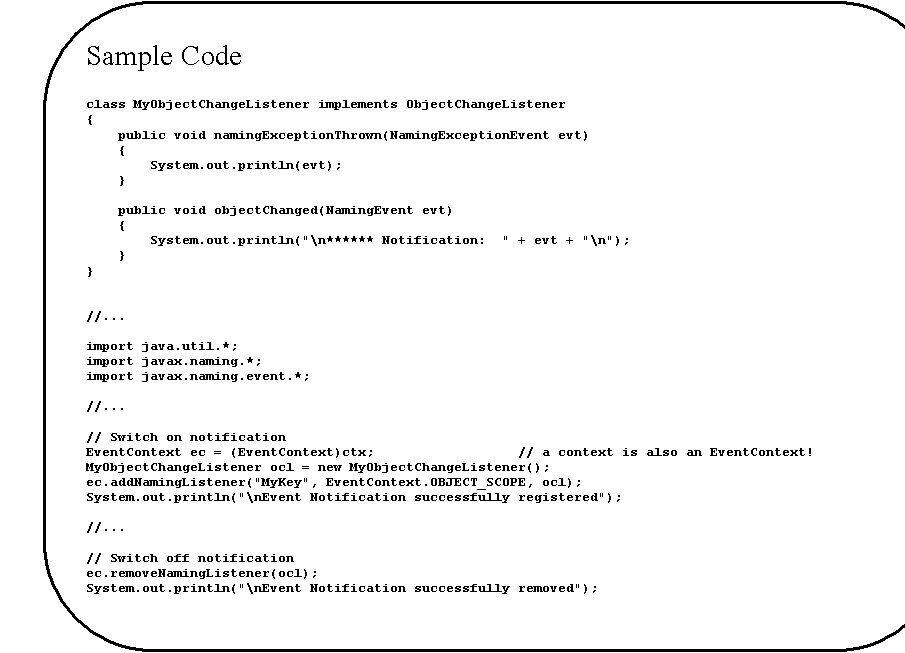

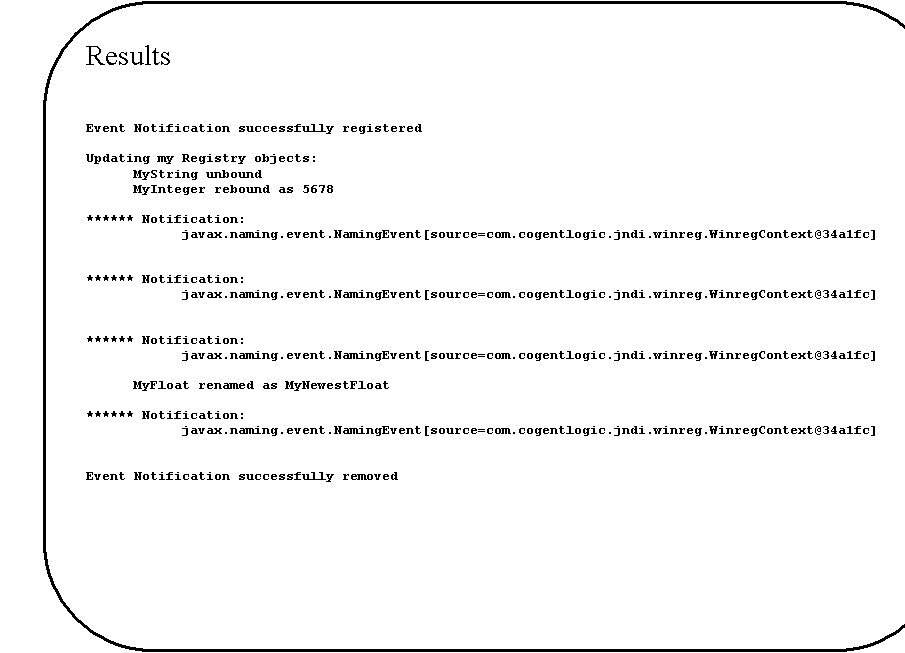

$Rounded Rectangle: Sample Code class MyObjectChangeListener implements ObjectChangeListener { public void namingExceptionThrown(NamingExceptionEvent evt) { System.out.println(evt); } public void objectChanged(NamingEvent evt) { System.out.println("\n****** Notification: " + evt + "\n"); } } //... import java.util.*; import javax.naming.*; import javax.naming.event.*; //... // Switch on notification EventContext ec = (EventContext)ctx; // a context is also an EventContext! MyObjectChangeListener ocl = new MyObjectChangeListener(); ec.addNamingListener("MyKey", EventContext.OBJECT_SCOPE, ocl); System.out.println("\nEvent Notification successfully registered"); //... // Switch off notification ec.removeNamingListener(ocl); System.out.println("\nEvent Notification successfully removed");$

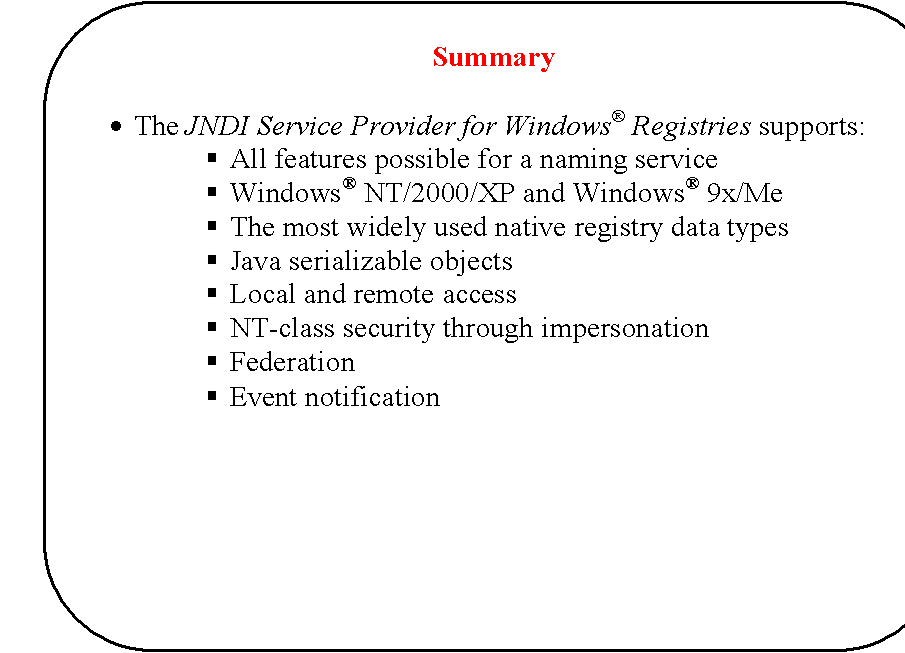

Rounded Rectangle: Summary

· The JNDI Service Provider for Windows® Registries supports:
§ All features possible for a naming service
§ Windows® NT/2000/XP and Windows® 9x/Me
§ The most widely used native registry data types
§ Java serializable objects
§ Local and remote access
§ NT-class security through impersonation
§ Federation
§ Event notification

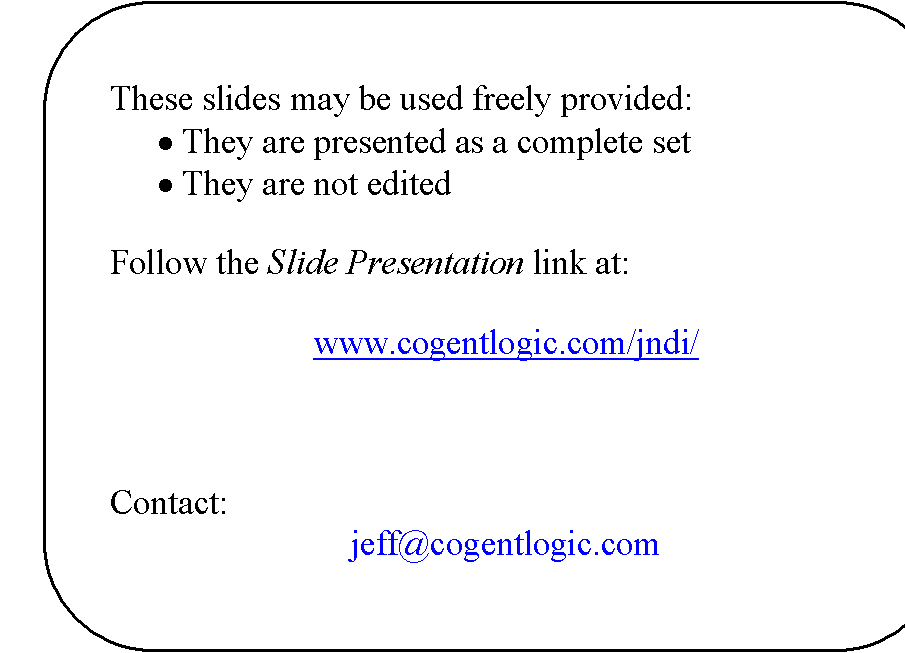

Rounded Rectangle: These slides may be used freely provided:
· They are presented as a complete set
· They are not edited

Follow the Slide Presentation link at:

www.cogentlogic.com/jndi/
